TG-S2000G Speed Swing Gate

TG-S2000G Speed Swing Gate: Fully Automatic Pedestrian Access Control

1-If you’re looking for a reliable and efficient pedestrian access solution, the TG-S2000G Speed Swing Gate offers advanced security features and seamless integration for modern spaces

 2- Explore the TG-S2000G Speed Swing Gate for efficient pedestrian access control. High security, smart features, and elegant design for modern environments.

3- Discover the TG-S2000G Speed Swing Gate for seamless pedestrian access control. High security, advanced features, and stylish design in one solution.

————————————————————————————————————————

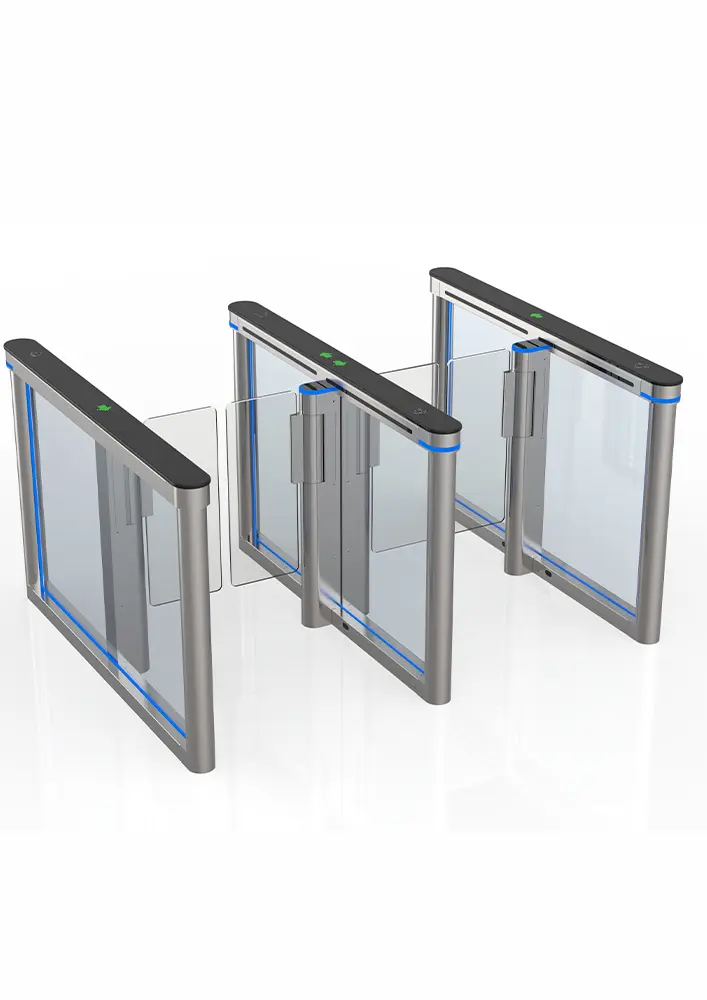

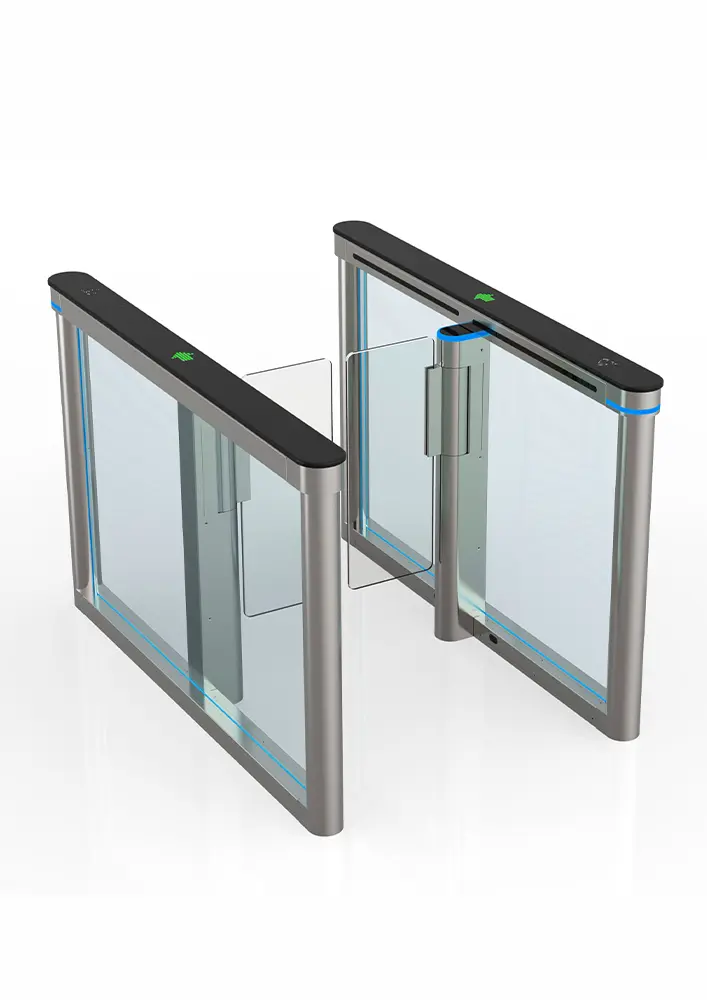

The TG-S2000G Speed Swing Gate is a fully automatic optical pedestrian turnstile designed for fast, safe, and efficient access control. With its intelligent motion detection and premium build quality, the TG-S2000G Speed Swing Gate is ideal for modern environments that demand both security and aesthetics.

Main Features of the TG-S2000G Speed Swing Gate:

 motor, ensuring smooth, silent, and highly reliable operation. Even in high-traffic environments, this advanced motor technology maintains consistent performance with minimal maintenance requirements.

• Access Accuracy & Safety:
  Integrated with anti-tailgating, anti-reverse entry, and precise infrared detection (8 pairs by Sick) to ensure secure, one-person-at-a-time access through the TG-S2000G Speed Swing Gate.

• Flexible Access Modes:
  Supports various authentication methods including IC/ID cards, QR codes, and facial recognition. One-way or bi-directional operation can be easily configured on the TG-S2000G Speed Swing Gate.

• Automatic Reset Function:
  If no entry is detected after authentication, the gate automatically returns to its locked state, preventing misuse of the TG-S2000G Speed Swing Gate.

• Memory Mode Options:
  Card-reading logic can be set to memory or non-memory mode, making it adaptable for peak hours or restricted zones.

Technical Specifications of the TG-S2000G Speed Swing Gate:

• Power Supply: 24V, 500W

• Dimensions: 1500mm (L) × 120mm (W) × 980mm (H)

• Net Weight: 75 kg

• Operating Temperature: -20°C to +70°C

• Passage Width: 600–900 mm

• Throughput Rate: Up to 35 persons/min

• Opening Time: 1.2 – 1.6 seconds

• Ingress Protection: IP44

• Communication Interface: Dry Contact, RS485

• Motor Type: Dunke Servo Brushless Motor

• Material: SUS304 Stainless Steel (1.5 mm thickness)

• Panel Material: 10 mm transparent acrylic (side and swing wings)

Application Scenarios for the TG-S2000G Speed Swing Gate:

• Corporate Buildings

• Subways and Transit Stations

• Airports and Border Checkpoints

• Government Agencies

• Commercial Centers and Malls

The TG-S2000G Speed Swing Gate offers a reliable solution for organizations seeking to manage pedestrian flow while maintaining a professional appearance. Its smart design and advanced components make the TG-S2000G Speed Swing Gate ideal for secure yet welcoming entry systems.
